For tarpaulin converters, inflatable product makers, PPE/labour protection garment manufacturers, composite substrate users, and digital printers, tensile strength, waterproof integrity, airtightness, and weather resistance are essential. Hebei Fusheng addresses failures such as seam leakage, low air retention, coating delamination, and poor ink hold-out with its Industrial PVC Series, covering:
Tarpaulin/Truck Cover/Outdoor Shelter – waterproof, UV-stable, wide-width
Inflatable Material (Bouncer/Castle/Slide/Pool) – high airtightness, anti-UV, FR (BS-5852), grades FSC001–FSC003
Wader/Rainwear Material – waterproof, cold-resistant (to –30°C), acid/alkali resistant for fishing/mining protective garments

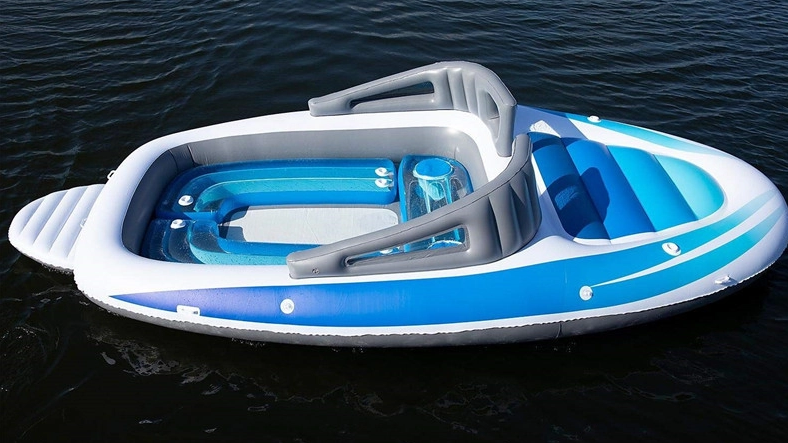

Airtight / Boat Fabric – super-high tensile (2000×2000 denier base, up to 4500 N/5cm), cannot-peel adhesion, for inflatable boats, rescue rafts (FSA01–FSA03)
High-Strength Composite Base Substrate – for leather laminating, shoe/bag reinforcement
HD Digital Printing PVC Leather – ink-absorbing coat for UV/digital/heat-transfer printing (printing leather grades)
Specifications range from 390 gsm (inflatable light) to 2200 gsm (airtight boat fabric), base weaves 250×250 to 2000×2000 denier, tensile strength up to 4500 N/5cm, operating temperature –30°C to +70°C.
Tarpaulin/Inflatable/Airtight: High-tenacity polyester scrim + weather-resistant PVC plastisol; UV absorbers & FR additives.
Wader: Cold-flexible PVC formulation for sub-zero wear; oil/weak-acid/alkali resistance.
Base Substrate: High-density woven or non-woven with uniform thickness for lamination bonding.
Print Media: Microporous ink-absorbing top coat prevents bleed, dries fast.
Hot-melt knife coating or calendering with controlled dwell ensures pinhole-free films. Airtight grades undergo air-drop tests; peel strength rated "cannot peel" on heavy grades (FSA01–FSA03). Tarpaulins tested for hydrostatic resistance and UV aging. Printing grades checked for dot gain and ink limit. Batch release only after tensile/tear/peel verification (DIN standards).
Custom width (jumbo rolls available), weight (± tolerance control), color, FR level, UV package, airtightness class, and ink-absorption depth. Sample rolls and full production runs supported.
Competitive Advantage | Specific Value to Clients |
|---|---|
Wide Application Range | One source for tarp, inflatable, wader, substrate, print media |
High Tensile (to 4500 N/5cm) | Withstands wind load, tension frames, heavy use |
Airtight Option (Boat Grade) | "Cannot peel" adhesion, verified air-hold |
Printable Grades | HD ink absorption, no curl, vivid color |
Custom Specs & Widths | Tailored to converting line requirements |
Dimension | Fusheng Industrial PVC Fabric | Commodity PE/PVC Tarp | PU-Coated Nylon |
|---|---|---|---|
Tensile Strength | 850–4500 N/5cm depending on grade | <800 N/5cm | 400–1200 N/5cm |
Airtightness (Select Grades) | Excellent, no peel adhesion failure | Not applicable | Moderate, pinholes possible |
UV Resistance | Formulated for multi-year outdoor | Poor-to-moderate | Moderate |
Printability (Print Grade) | Optimized HD coating | Poor | Variable |
Lifespan (Outdoor Heavy Grade) | 3–5+ years | 1–2 years | 2–3 years |
For inflatable boats: specify airtight grade with 2000×2000 denier base and >4000 N/5cm tensile (FSA01/FSA02).
For digital print: request printing-grade with confirmed compatibility to your printer ink set.
Store rolls vertically or on racks; avoid folding coated side inward for long periods.
Fusheng's Industrial & Specialty PVC Coated Fabric Series delivers engineered solutions for tarpaulins, inflatables, protective garments, laminating substrates, and printable media. With high tensile strength, weather resistance, airtight options, and HD-printable surfaces, it outperforms commodity alternatives in durability and versatility for B2B converters and OEMs.
Q: Can tarpaulin be used for truck curtains and temporary warehouses?
A: Yes. UV-stabilized, waterproof, flame-retardant options available.
Q: Is the inflatable material airtight enough for boats/castles?
A: Yes. Select airtight grade with high peel strength ("cannot peel" tested) and verified air-hold.
Q: Can wader material be cold-resistant?
A: Yes. Formulated for flexibility down to approx. –30°C; acid/alkali/oil resistant.
Q: Does the printing media curl after inkjet?
A: No. Dimensionally stable base + ink-absorbing coat prevents curl and bleed.
Q: Can width and weight be customized?
A: Yes. Multiple widths and weights available; custom developments on request.
Hebei Fusheng supplies converters, OEMs, and distributors globally. Request technical datasheets and samples to qualify the right grade for your application.
Hebei Fusheng Decoration New Materials Co., Ltd., Corporate Product Brochure – Industrial PVC Tarpaulin, Inflatable, Wader, Airtight & Substrate Series, pp.19–24, 2024.
National Standards of the People's Republic of China, GB/T 8948-2022 PVC Artificial Leather and Coated Fabrics, Beijing: Standards Press of China, 2022.
British Standards Institution, BS 5852:2006 Assessment of ignitability of upholstered seating & coated fabrics, London: BSI, 2006.
International Organization for Standardization, ISO 9001:2015 Quality Management Systems — Requirements, Geneva: ISO, 2015.
DIN Deutsches Institut für Normung, DIN 53354/53363/53357 Testing Methods for Coated Fabrics, Berlin: DIN, 2018.
